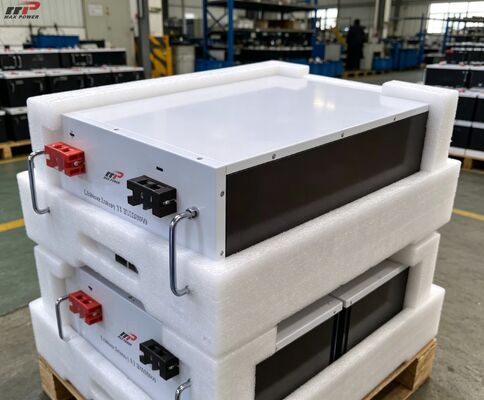

51.2V 200Ah LiFePO4 Battery Ultimate Energy Storage Solution
Lifepo4 Batteries 10kwh 20kwh Lithium 200Ah Battery vertical stacked High voltage battery can support variety communications
can communicate with variety inverter.

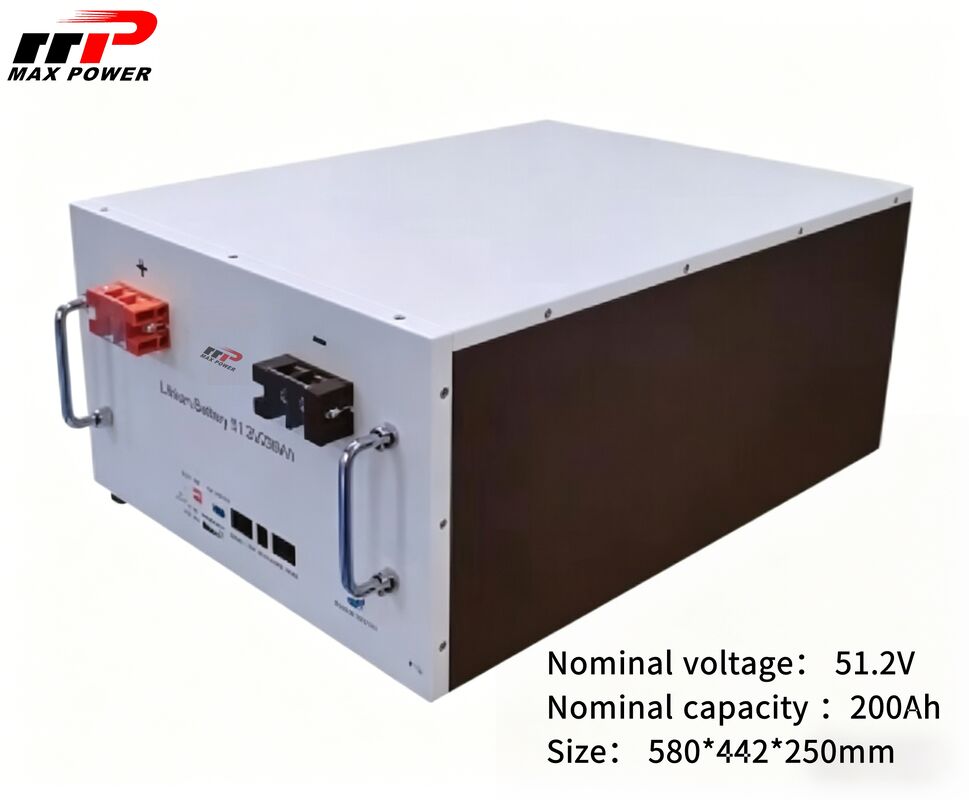

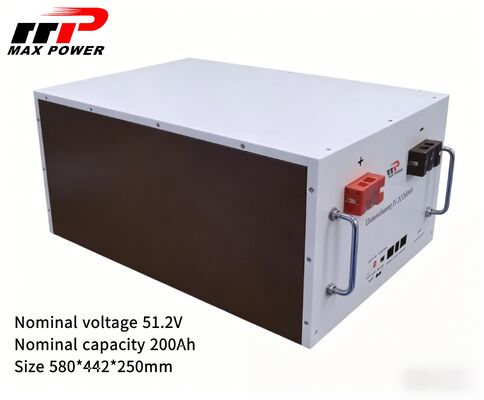

51.2V 200Ah LiFePO4 Battery, designed for reliable, long-lasting power across home, industrial, and mall center applications. With a 10.24kWh capacity, robust build (580×442×250mm, 82kg), and advanced safety features, it delivers stable power for every scenario.
| Cell Type | Lithium Iron Phosphate |
| Nominal voltage | 51.2V |
| Nominal capacity | 200Ah |
| Size | 580*442*250mm |
| Weight about | 82KG |
| Charging method | CC/CV/VP |
| Charging current standard | 50A maximum 100A |
| Charge cut-off voltage | 58.4V (3.65V) |
| Discharge method | CC/CV/VP |
| Discharge current standard | 50A maximum 100A |
| Discharge cut-off voltage | 43.2V (2.7V) |
| Display | LCD screen |
| Communication interface | 485/232/CAN |
| Working temperature: | Charge: 0~+50℃, |
| Discharge: -20~+60℃ | |
| Protection function | Overcharge, overdischarge, overcurrent |
| Certificate: | CE, ROHS, UL, REACH |
| HS CODE : | 8507600090 |
Advantage:
✅ground ecological high voltage safety and reliable technology with grade A lifepo4 battery cell inside cycle life more than 6000 cycles
✅5 years warranty to provide the after-sale service and technology support .
Include resend new battery or replacement BMS
✅ Can be stacked each module with 51.2KW ,which can be stacked to be 50KW
✅ Support fast charge and 100% deep discharge support quick communication
✅ mobile energy storage system 5KW 10KW 15KW 20KW to 50KW
✅ Smart Connectivity: Supports 485/232/CAN communication with an LCD screen for real-time monitoring.
✅ Wide Working Range: Operates reliably from 0~+50℃ (charging) and -20~+60℃ (discharging).
✅ High Efficiency: Standard 50A charge/discharge (max 100A) with CC/CV/VP control for optimal performance.
Ideal Applications
- Home solar energy storage & backup power
- Industrial and communication base station UPS
- RVs, camper vans, and off-grid mobile power systems
