| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | MP/OEM brand |
| إصدار الشهادات: | PSE, KC, CB, UL |
| رقم الموديل: | 21700 25ah 22.2v |
| الحد الأدنى لكمية: | 100 قطعة / الطلب |
|---|---|
| الأسعار: | negotiate |
| تفاصيل التغليف: | 100pks/ctn |
| وقت التسليم: | 3-5 أيام |
| شروط الدفع: | L/C ، T/T ، Western Union |
| القدرة على العرض: | 500000pcs/يوم |
| مادة: | خلية بطارية ليثيوم أيون | لون: | أزرق / رمادي / برتقالي |
|---|---|---|---|
| الجهد االكهربى: | 22.2v | سعة: | 25 هـ |
| الحياة: | 500 طن | مقاس: | T73.5*W110*L200MM |
| وزن: | 2400 جرام | MaxDischarge: | 15A |
22.2V 21700 25AH Lithium-ion Battery For ROBOT with 485 communication smart 6 series 15A discharge
Quick view:
| NO | Item | Specifications |
| 1 | Assemblymode: | 6S5P |
| 2 | Capacity: | 25Ah |
| 3 | Nominal voltage: | 22.2V |
| 4 | Impedance ≤ | 300mΩ |

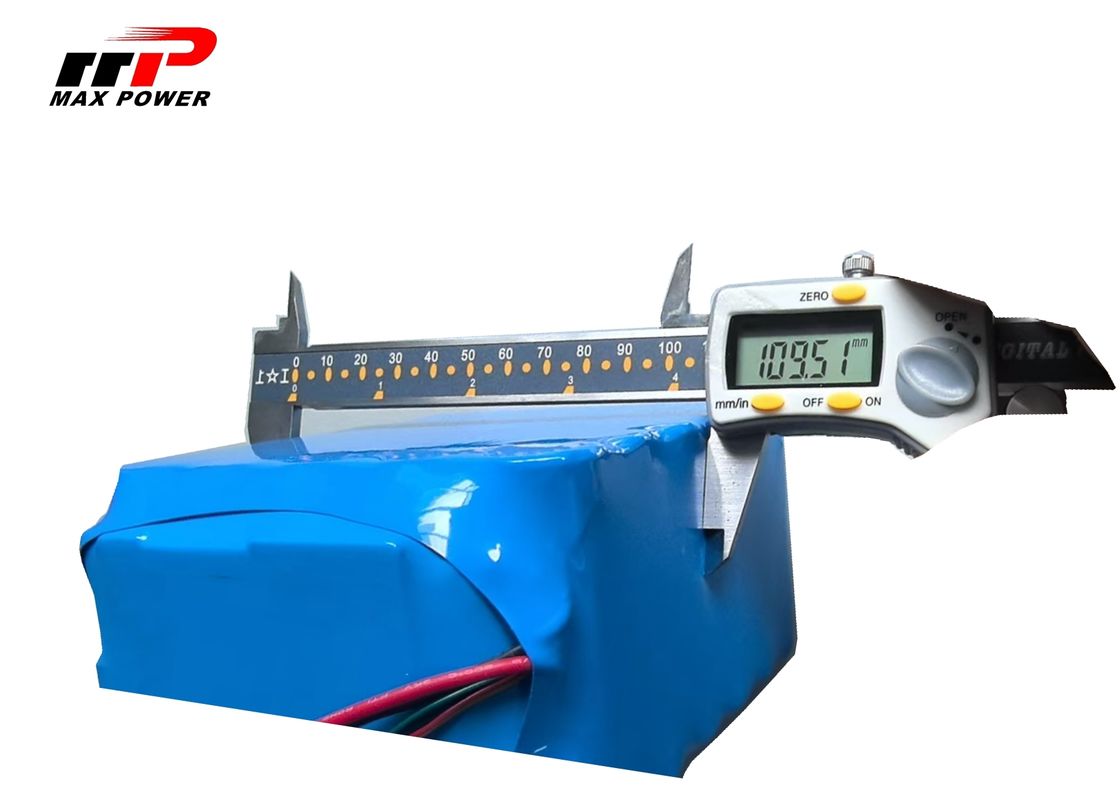

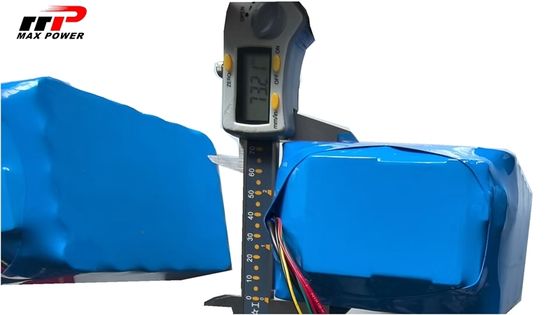

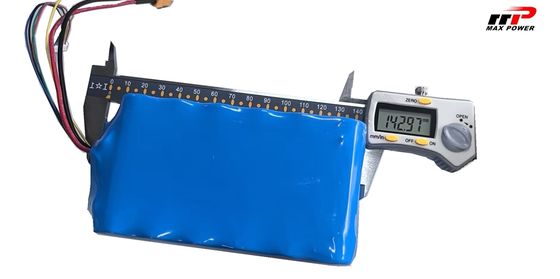

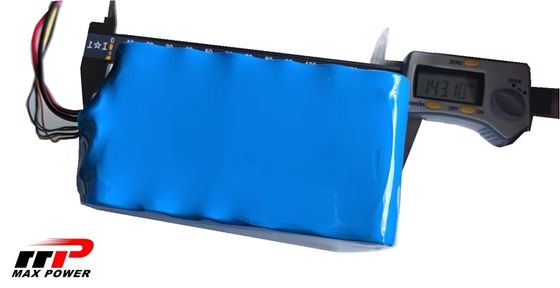

| 5 | Dimensions(mm) : | T:≤73.5mm *W:≤110mm *H≤143mm |
| 6 | Weight(g): | about 2400g |
| 7 | overcharge protection voltage | 25.5V |
| 8 | Max.chargecurrent : | 15A |
| 9 | over discharge protection voltage | 16.2V |
| 10 | Maxdischargecurrent : | 15A |
| 11 | Charge temperature: | 0℃～+45℃ |
| 12 | Discharge temperature: | -20℃～+60℃ |
| 13 | Storage temperature:-5℃～35℃: | (better in 25±5℃) charge to 40%~50% of full capacity when storage |
| 14 | Storage humidity: | ≤75% |
| 15 | Delivery Voltage: | ≥21.6V |
XT60 female connector 3239-16AWG
Application: ROBOT PROJECT
The packing info.
Industrial brown box
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 120pcs/6box/ctn
OEM PACK SERVICE:
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10 days around; over 500k pcs, 15 days around.
Garrantee:
Our company gives garrantee for 1 year.
For more info. Please feel free to contact me in any way below, hope 14years of battery area working experance can help you out.
